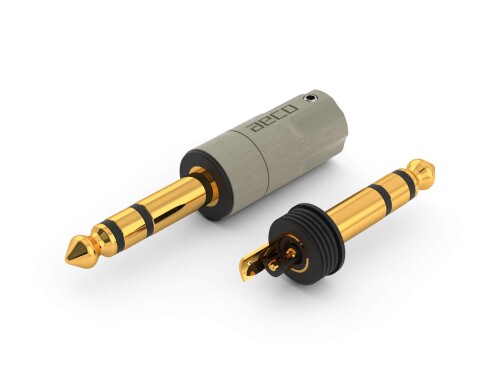

aeco TRS Plug 6.3粍 Stereo AT6-1231G, 1pcs/1set, Gold Plating, Vacuum bag

aeco TRS Plug 6.3mm Stereo AT6-1231G, 1pcs/1set, Gold Plating, Vacuum bag



The body of plug was lathed in one piece to avoid the conduction loss when signal through the different structure and interface.

Shell between body isolate by insulator material. Depends on the method of processing, it can choose to make the shell be a conductor.

The conductor is made from high-purity tellurium copper without nickel base.

By using highest quality of design techniques and material to provide customer who has "Hi-End" requirement.

Mechanical structure:
The center pin is fixed to the POM insulator by assemble function
Each channel is separate by POM, then assemble with center pin.
Use the POM latch through each channel in order to fix the body.
The body and the shell locked by screwing.
POM sleeve is fixed with end of shell by using screw.
The cable hole with small POM sleeve is 6.5mm,
bigger POM sleeve is 8.5mm Without POM sleeve is 10.5mm.
Note:
This product is include: screw for cable 4 mm*1pcs and 6 mm*1pcs.
Material:
Contact Pin: Tellurium Copper (#C14500 / copper contains over 99%)
Body: Tellurium Copper (#C14500 / copper contains over 99%)
Insulator: POM (Black)
Lock head: POM (Black)
Shell: Brass alloy (#C3604)
Sleeve: POM (Black)
Screw: Iron
Finish:
Contact pin: 10u" Gold plating (no nickel base).
Body: 10u" Gold plating (no nickel base).
Insulator: None.
Head lock: None.
Shell: Satin Nickel + Topcoat.
Sleeve: None.
Screw: Nickel plating.
Electrical Characteristics:
Contact resistance 1.0 mOhm
Dimension:
Biggest OD:13.5mm
Total Length: 63.0mm
Package:
Vacuum Bag
Recommend soldering temperature:
Temperature Soldering Iron, please keep 350 degree within 15 second
Temperature Soldering Iron, please keep 400 degree within 15 second
Temperature Soldering Iron, please keep 450 degree within 10 second
Product production process comply with RoHS
商品コード59080105442商品名aeco TRS Plug 6.3mm Stereo AT6-1231G, 1pcs/1set, Gold Plating, Vacuum bag型番AT6-1231Gカラーブラック, ゴールド※他モールでも併売しているため、タイミングによって在庫切れの可能性がございます。その際は、別途ご連絡させていただきます。
カラー:ブラック, ゴールド
シリーズ名:-
ブランド名:aeco.tw
メーカー型番:AT6-1231G
